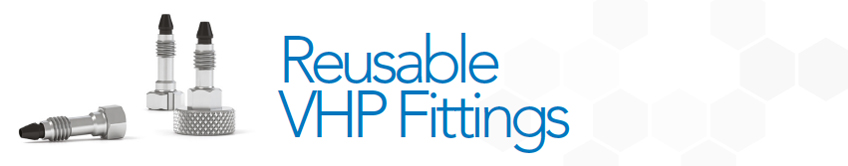

IDEX Health & Science introduces an innovative line of Very High Pressure (VHP) fittings, designed to withstand extreme pressures. This patent-pending line of ground-breaking fitting systems is perfect for use within the increasingly demanding requirements of today’s high performance analytical systems.
The Reusable VHP fittings can be reused when following the tightening torque specification listed below. With a polymer front ferrule, there is no damage to the tubing or receiving port, also increasing the life of these components.
Pressure rated up to 25,000 psi (1,720 bar)
Capable of up to ten repeat assembly cycles with
no impact on pressure holding ability or carry-over
Available in 10-32 threads for 1/16” OD tubing and
M4 threads for 1/32” OD tubing
Materials of construction: stainless steel and
proprietary PEEK polymer blend (PK)
