0.25mm ID DB-5ms Columns





 Agilent J&W DB-5ms features an excellent signal-to-noise ratio for analytical applications. This improved performance gives better sensitivity and mass spectral integrity. What's more, DB-5ms delivers excellent inertness with active compounds. These columns are exact replacements for HP-5TA, and are close equivalents to USP phase G27. DB-5ms is very low bleed, making it ideal for GC/MS.

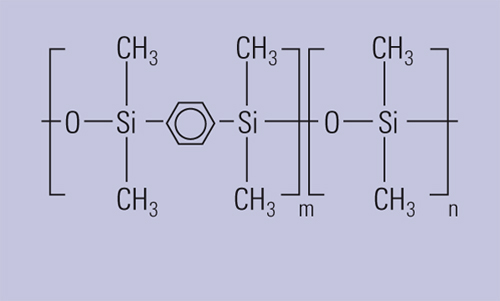

  • Phenyl Arylene polymer virtually equivalent to a (5%-Phenyl)-methylpolysiloxane
  • Non-polar with very low bleed characteristics, ideal for GC/MS
  • Excellent inertness for active compounds
  • Improved signal-to-noise ratio for better sensitivity and mass spectral integrity
  • Bonded and cross-linked
  • Solvent rinsable
  • Exact replacement of HP-5TA
  • Close equivalent to USP Phase G27
  • Test mix available
  • Each Agilent J&W GC column is tested with the tightest industry QC specifications for column bleed, sensitivity, and efficiency to provide you utmost confidence in qualitative and quantitative results
  • For details about the QC test conditions including the test probe mixture and the resulting chromatogram, please refer to the Agilent J&W GC Column Performance Summary shipped with each GC column

Similar Phases: Rtx-5ms, Rxi-5ms, Rxi-5Sil MS, PTE-5, BPX-5, AT-5ms, ZB-5ms, ZB-5MSi, SLB-5ms, Equity-5

Part Number

Products

Price

Qty / Buy
AT-122-5536G DB-5ms 30m x 0.25mm ID, 0.50µm film, 10m DRGRD CHF 1045.00
AT-122-5533G DB-5ms 30m x 0.25mm ID, 1.00µm film, 10m DRGRD, ea. CHF 1045.00
AT-122-5532G DB-5ms 30m x 0.25mm, 0.25µm film, 10m DRGRD CHF 1045.00
AT-122-5532-KEY DB-5MS 30m, 0.25mm, 0.25um w/Smart Key CHF 951.00
AT-122-5562G DB-5ms 60m x 0.25mm ID, 0.25um, 10m DRGRD, ea. CHF 1655.00
AT-122-5562-KEY DB-5MS 60m, 0.25mm, 0.25um w/Smart Key CHF 1621.00
AT-122-5511 DB-5ms 15m x 0.25mm ID, 0.10µm film, ea. CHF 553.00
AT-122-5512 DB-5ms 15m x 0.25mm ID, 0.25µm film, ea. CHF 553.00
AT-122-5516 DB-5ms 15m x 0.25mm ID, 0.50µm film, ea. CHF 553.00
AT-122-5513 DB-5ms 15m x 0.25mm ID, 1.00µm film, ea. CHF 553.00
AT-122-5522 DB-5ms 25m x 0.25mm ID, 0.25µm film, ea. CHF 790.00
AT-122-5531 DB-5ms 30m x 0.25mm ID, 0.10µm film, ea. CHF 906.00
AT-122-5532 DB-5ms 30m x 0.25mm ID, 0.25µm film, ea. CHF 906.00
AT-122-5536 DB-5ms 30m x 0.25mm ID, 0.50µm film, ea. CHF 906.00
AT-122-5533 DB-5ms 30m x 0.25mm ID, 1.00µm film, ea. CHF 906.00
AT-122-5552 DB-5ms 50m x 0.25mm ID, 0.25µm film, ea. CHF 1412.00
AT-122-5561 DB-5ms 60m x 0.25mm ID, 0.10µm film, ea. CHF 1543.00
AT-122-5562 DB-5ms 60m x 0.25mm ID, 0.25µm film, ea. CHF 1543.00
AT-122-5563 DB-5ms 60m x 0.25mm ID, 1.00µm film, ea. CHF 1543.00
AT-122-5512E DB-5ms 15m x 0.25mm ID, 0.25µm film 5"cage, ea. CHF 620.00
AT-122-5532E DB-5ms 30m x 0.25mm ID, 0.25µm film 5"cage, ea. CHF 1016.00
AT-122-5536E DB-5ms 30m x 0.25mm ID, 0.50µm film 5"cage, ea. CHF 1016.00
AT-122-5562E DB-5ms 60m x 0.25mm ID, 0.25µm film 5"cage, ea. CHF 1731.00
AT-122-5533E DB-5ms 30m x 0.25mm ID, 1µm film 5"cage, ea. CHF 1016.00
AT-122-5533UIE DB-5ms UI 30m x 0.25mm ID, 1.0µm film 5"cage, ea. CHF 1061.00
